How to Reset the device to the factory defaults
Each LUMIRING device has hardware and software reset options. Furthermore there are partial reset options when all configuration can be reset except network settings that helps to speed up the process of further reconfiguration.
Please consult with each device manual for the exact details of the reset procedure as they varies between devices.
Hardware Reset:
CAUTION: Hardware Reset.
- Applying a hardware reset will completely erase all data from the controller's memory, including access keys, rules, schedules, account data, and network settings.
- After this action, it will not be possible to undo changes or restore data.
- The controller will be returned to factory default settings.

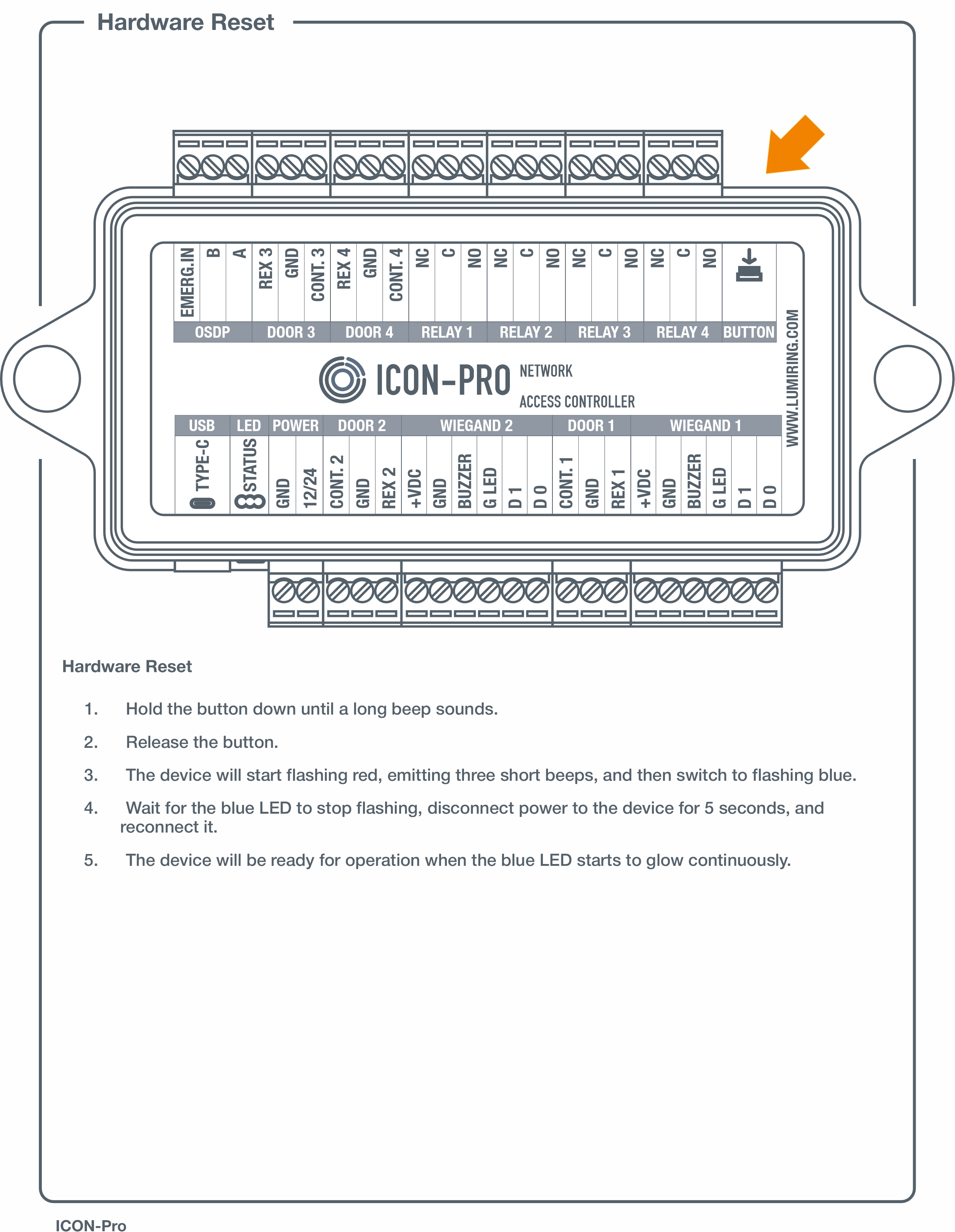

ICON-PRO

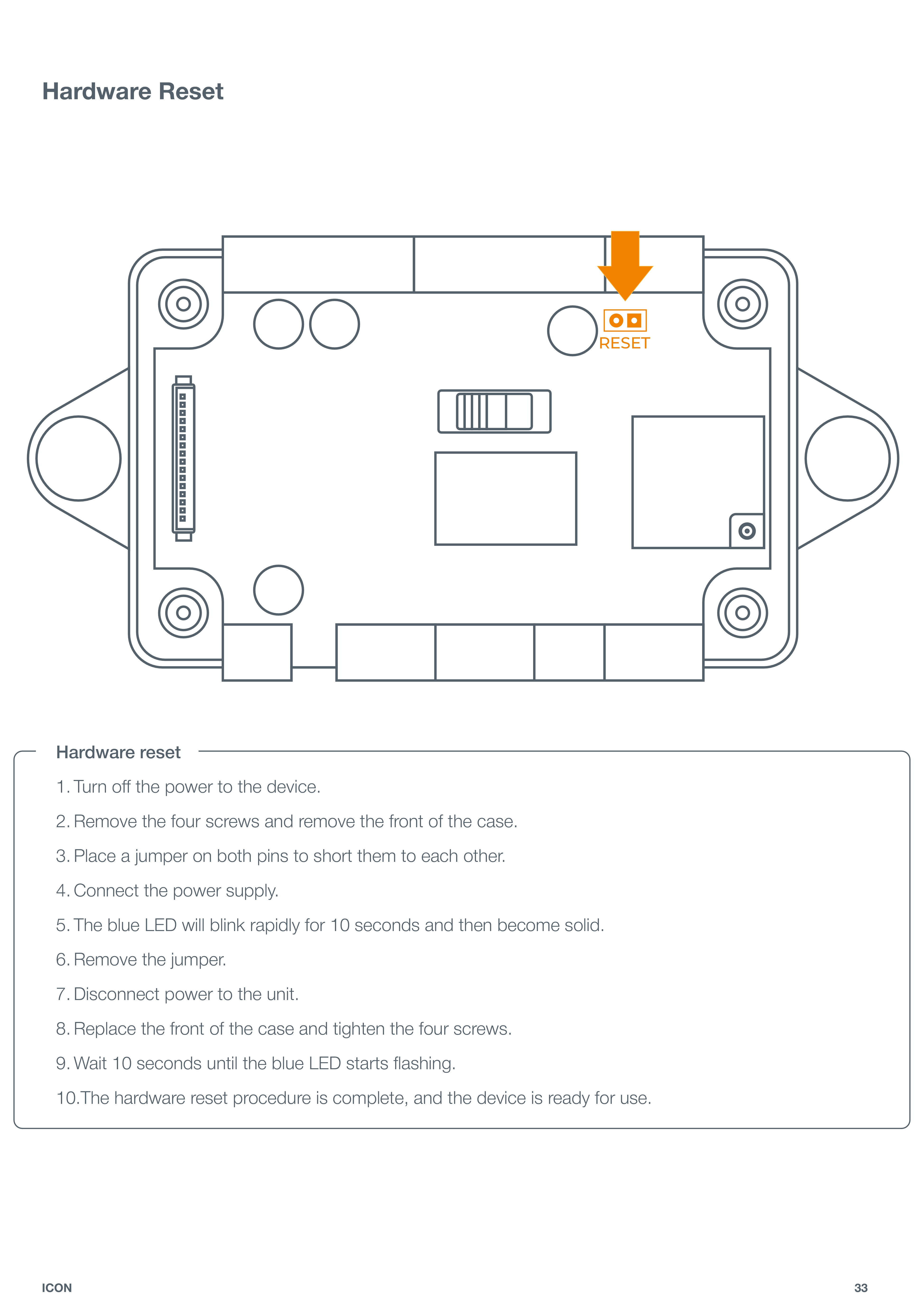

ICON

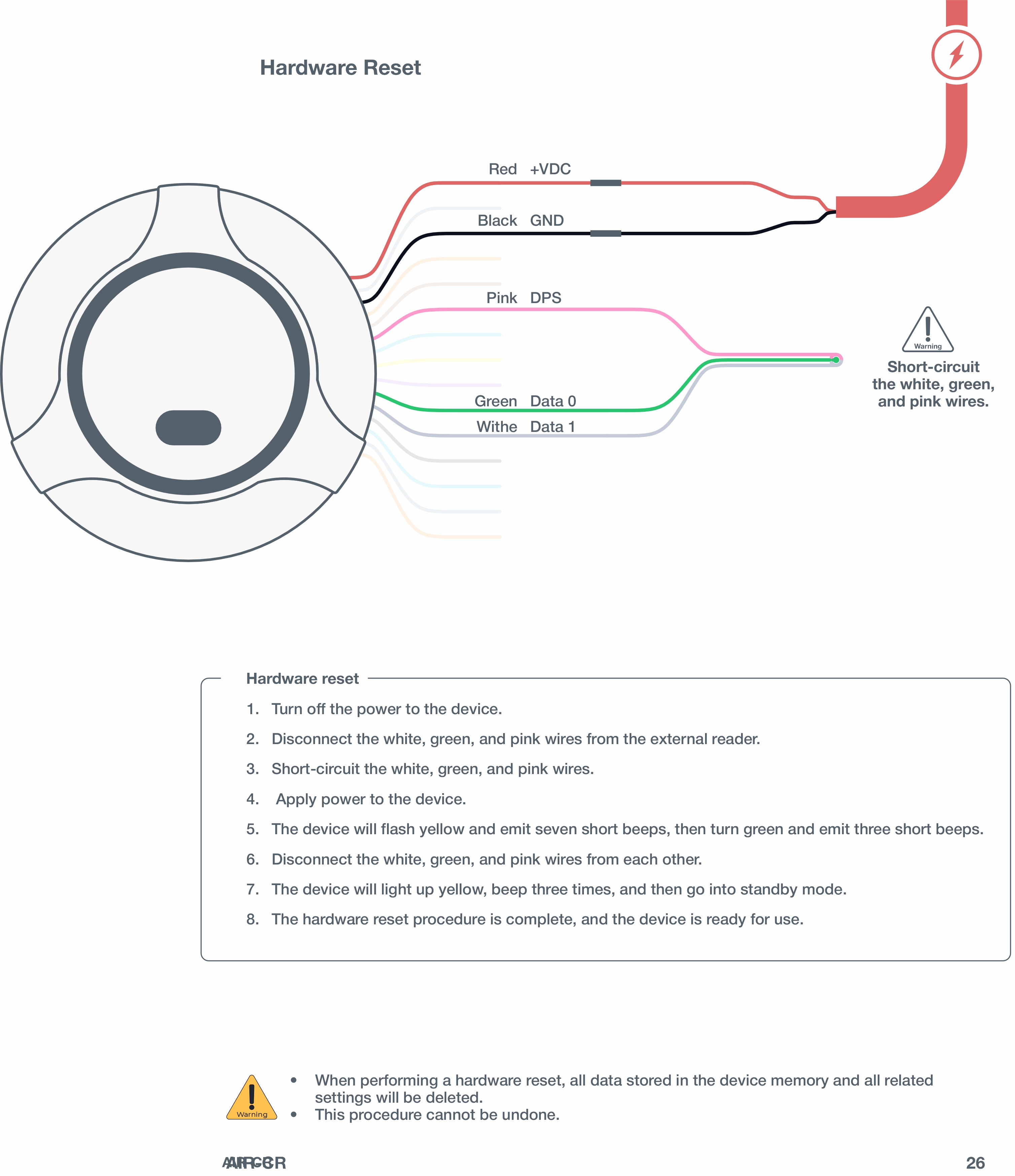

AIR-CR
AIR-R

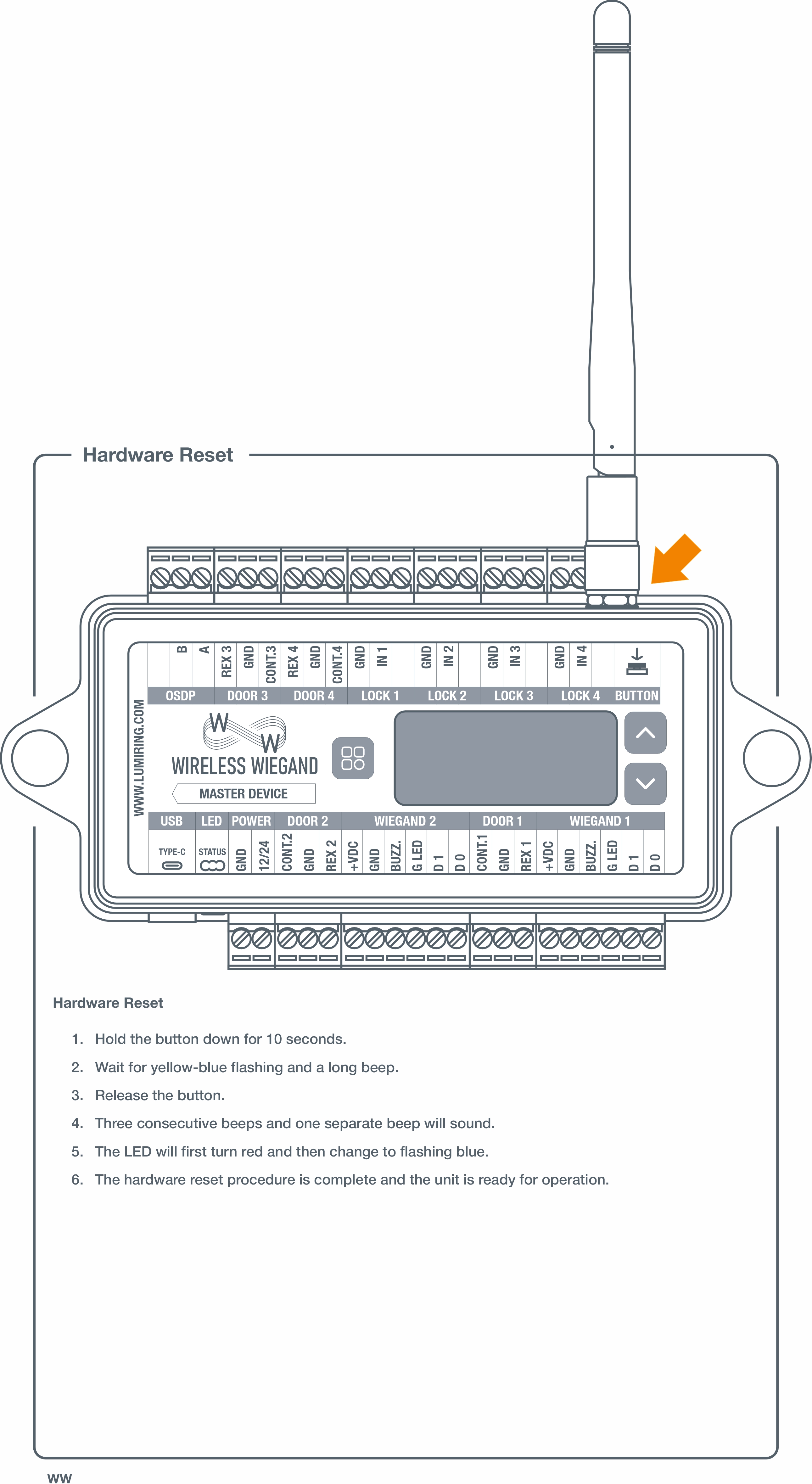

Wireless Wiegand
LRM-2CRS
Program Reset:
Reset via the Embedded Web Interface.
Applies to devices:
- ICON-Pro
- ICON
- AIR-CR
- AIR-R
- AIR-USB
- Wireless Wiegand

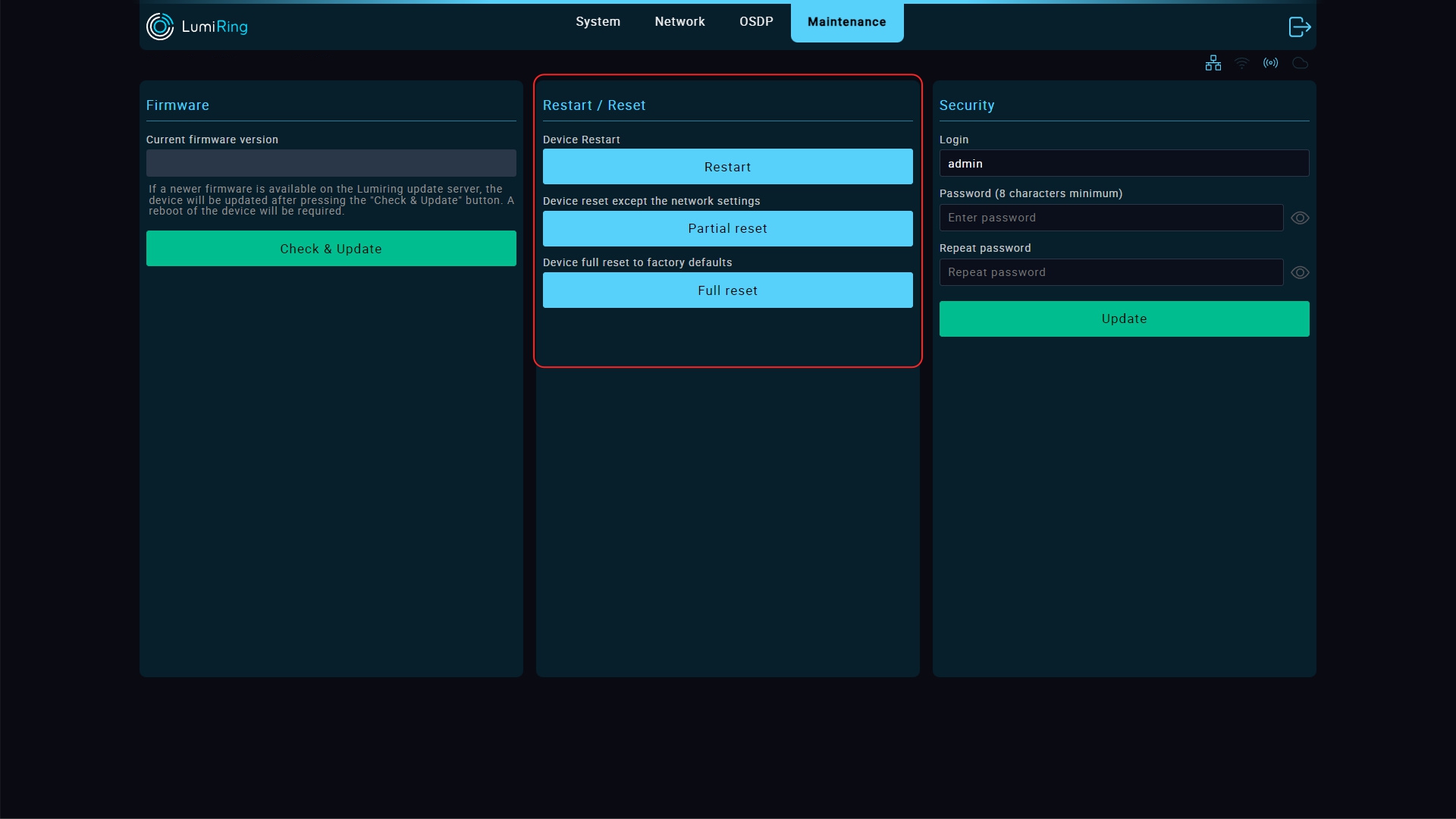

Full Reset, Partial Reset and Restart of the device can be performed in the Maintenance section of the devices embedded web interface.
CAUTION: Full Reset.
Applying a Full Reset will completely erase all data from the controller's memory, including access keys, rules, schedules, account data, and network settings.
After this action, it will not be possible to undo changes or restore data.
The controller will be returned to factory default settings.
CAUTION: Partial Reset.
Partial Reset will erase some data from the controller memory: access keys, rules, schedules, account data.
The device's network settings will not be reset.
It will then be impossible to undo changes or restore data.
Reset via the LEES app.
Applies to devices:
- ICON-Pro
- ICON
- AIR-CR
CAUTION: Full Reset.
Applying a Full Reset will completely erase all data from the controller's memory, including access keys, rules, schedules, account data, and network settings.
After this action, it will not be possible to undo changes or restore data.
The controller will be returned to factory default settings.
