Antenna Selection Guide for Wireless Wiegand in 900 MHz ISM Band

What Wireless Wiegand Is

Wireless Wiegand replaces the traditional wired connection between RFID readers and access controllers with a secure wireless radio link operating in the 902-928 MHz ISM band. The system transmits Wiegand, OSDP, relay signals, and sensor data without running cable between devices.

Why Antenna Choice Matters

Because Wireless Wiegand relies on radio communication, antenna selection directly affects communication range, signal stability, and resistance to interference. The correct antenna can significantly improve communication distance and performance, especially in installations with walls, metal structures, or long link distances.

This guide explains which antenna types work best for Wireless Wiegand installations and how to select the appropriate antenna for different environments.

The antenna directly affects signal distance, connection quality, and interference levels.

For longer distances and specific scenarios, other types of antennas may be preferred. Directional antennas, such as Yagi or panel antennas, can provide increased range and reduced interference by focusing the signal in a specific direction. However, they require precise alignment and are more suitable for point-to-point communication. It's important to consider the specific requirements of your application when selecting an antenna.

Elevation & Placement

Mounting height greatly influences range. Higher placement reduces obstacles and interference from ground reflections and surrounding objects. A clear line-of-sight ensures stronger signals, especially in large-area or outdoor deployments.

Antenna Alignment Feedback with WW

Wireless Wiegand comes with a built-in status display and diagnostics, enabling installers to fine‑tune link performance effectively on-site:

• Signal strength percentage shows signal link quality.

• A packet loss graph (60 sec, 10 min, 24 h intervals) helps detect intermittent connectivity.

• Event loss and code logs display actual card reads, including UID codes and Wiegand port info, confirming true system operation.

During setup, use the built-in display or web UI to monitor these real-time metrics while adjusting antenna aim. Make small, incremental changes and confirm both signal strength and low packet loss before final mounting. Reliable connectivity and card transmission become clear immediately during installation—no external verification needed.

Frequency Band Compatibility

Wireless Wiegand operates in the 902–928 MHz ISM band. Because antennas are designed for specific frequency ranges, using antennas intended for Wi-Fi (2.4 GHz / 5 GHz) or other bands will result in very poor range or unstable communication

Always select antennas specifically designed for the 900 MHz / 902–928 MHz range to ensure proper signal strength and stable operation.

Antenna orientation must match on both Wireless Wiegand devices. If one antenna is mounted vertically and the other horizontally, signal strength, communication range, and reliability can be significantly reduced.

1. Omnidirectional Antennas

Omnidirectional antennas provide 360-degree coverage and are ideal for installations where signals need to be transmitted in all directions equally.

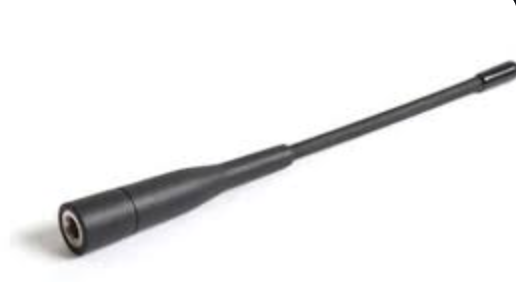

Whip Antennas

Description: A flexible, vertical antenna commonly used in access control and wireless communication systems.
Pros: Easy to install, provides uniform radiation in all directions.
Cons: Limited range compared to directional antennas.
Example Applications: Reader-to-controller wireless communication in small office or residential installations.

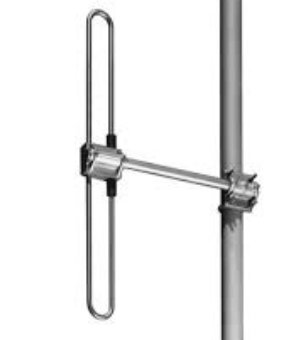

Dipole Antennas

Description: A two-element antenna with improved efficiency over whip antennas.
Pros: Better performance and range compared to single-element antennas.
Cons: Requires specific mounting orientation for optimal performance.
Example Applications: General-purpose access control setups.

2. Semi-Directional Antennas

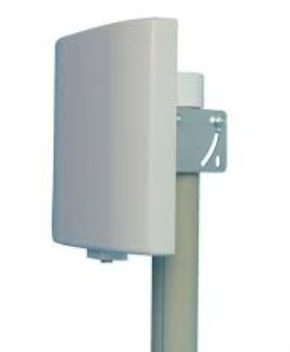

Patch (Panel) Antennas

Description: A flat, rectangular antenna that directs signals forward.
Pros: Higher gain than omnidirectional antennas; reduces interference from other directions.
Cons: Limited to fixed mounting positions.
Example Applications: Entry points where signals need to be directed towards specific areas.

3. Highly Directional Antennas

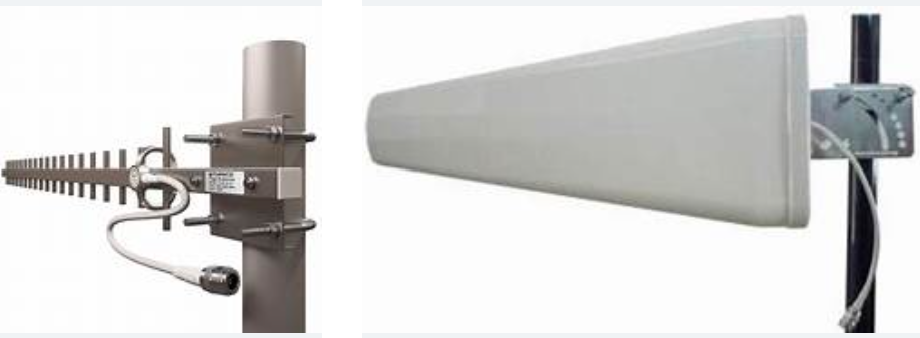

Yagi Antennas

Description: A multi-element antenna designed for high-gain, directional applications.
Pros: Excellent range and efficiency for point-to-point wireless links.
Cons: Requires precise alignment and mounting.
Example Applications: Extended-distance communication between remote access control points.

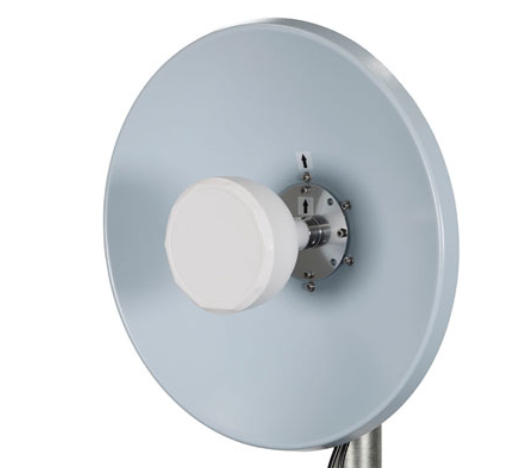

Parabolic (Dish) Antennas

Description: A high-gain dish antenna that focuses signals in an extremely narrow beam.
Pros: Maximum range and minimal interference.
Cons: Bulky and requires precise alignment.
Example Applications: Large industrial or campus-wide access control networks.

Key Considerations for Antenna Selection

1. Frequency Compatibility – Ensure the antenna supports the 800/900 MHz ISM band.
2. Coverage Needs – Choose omnidirectional for broad coverage, semi-directional for focused areas, and directional for long-range links.
3. Installation Environment – Consider obstructions, interference, and mounting options.
4. Antenna Gain – Higher gain improves range but reduces coverage angle.

🛠️ Installer Tips & Best Practices for Wireless Wiegand

Make the most of your antenna setup with these quick field-proven tips:

✅ Match Antenna Polarization

Ensure both antennas are mounted vertically (or horizontally). Mismatched polarization can reduce signal by 20–40 dB.

✅ Fine-Tune with Built-In Tools
Use the WW device screen or web interface to monitor:

• Signal strength (%)

• Packet loss trends (live graph)

• Real-time card reads and Wiegand data

✅ Avoid Reflective Obstructions
Stay clear of metal scaffolding, rebar, power boxes, or heavy RF noise sources nearby.

✅ Mount Securely
Use rigid mounts—wind, vibration, or loose brackets can cause misalignment or dropouts over time.

✅ Adjust in Small Steps
During setup, move antennas in small increments while watching signal feedback. You don’t need third-party analyzers—WW shows you everything you need.

Additional Resources

For a deeper understanding of antenna selection and placement, watch this webinar:
Antenna 101 - Choosing the Right Antenna: https://www.youtube.com/watch?v=BAhvJTyNtbg

 Custom Cables for Optimal Performance

• For runs under ~10 ft, LMR-240-UF works perfectly

Using the right cable length is essential to minimize signal loss and interference in Wireless Wiegand and 900 MHz ISM band applications. Pre-cut cables can introduce excess length, causing unnecessary attenuation.
For best performance, it’s recommended to custom-build cables to exact lengths needed for your installation. This reduces unnecessary signal loss and improves system efficiency.

Recommended Custom Cable Supplier

• MPD Digital – Offers custom-built RF cables for 900 MHz antennas, allowing selection of connector types, cable length, and shielding options.
  https://mpddigital.us/cable-builder/

• Premade cables - Data-alliance >12ft  or  <10ft  - these are cheapest quality ones

Top Antenna Suppliers and Stores

1. Data Alliance – Wide selection of 900 MHz antennas, including omnidirectional, directional (Yagi, panel), and fiberglass antennas.
• 900 MHz choices
• Good for longer distances: A9O8NF – 900MHz 8dBi omni fiberglass (N-female)
2. L-Com – One of the best shops for diverse antenna selection, including HG90X series and high-gain Yagi and patch antennas.
• 900 MHz Yagi Antennas
• Example products:
• HG908U-PRO – 900 MHz 8 dBi Omnidirectional Antenna ($173)
3. Digi-Key – Offers Laird, Nearson, and MikroTik antennas. Good for sourcing 900 MHz monoband and window-mount antennas.
• 900MHz choices
4. Nearson Antennas – Offers window-mounted 4 dBi antennas and custom solutions.

5. Amazon - generally lower quality antennas, but easier to order
   Raigen 6 dbi
   Unbranded whip type 9 dbi

Conclusion

Selecting the right antenna for a Wireless Wiegand system in the 900 MHz ISM band depends on specific application needs. Whether requiring full 360-degree coverage, directional focus, or long-range connectivity, the right choice ensures optimal system performance and reliability.

Note: Wireless Wiegand operates in the 900 MHz ISM band in the U.S. For reference, we use 900 MHz throughout this article. In some other regions, the system may utilize the 800–868 MHz range, depending on local regulatory requirements.

Make sure you get proper connectors on antenna and cables!

Antenna or any cable should have RP-SMA-MALE connector toward the WW device

- see this KB article "What is the antenna connector on the Wireless Wiegand ?"
